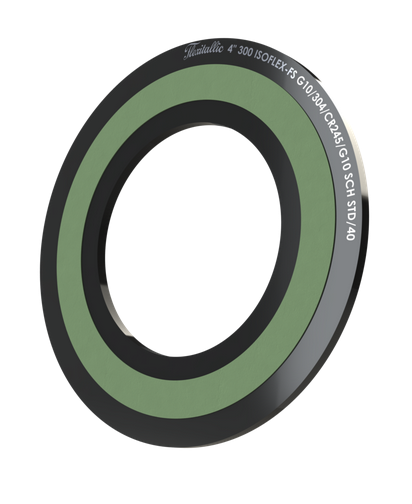

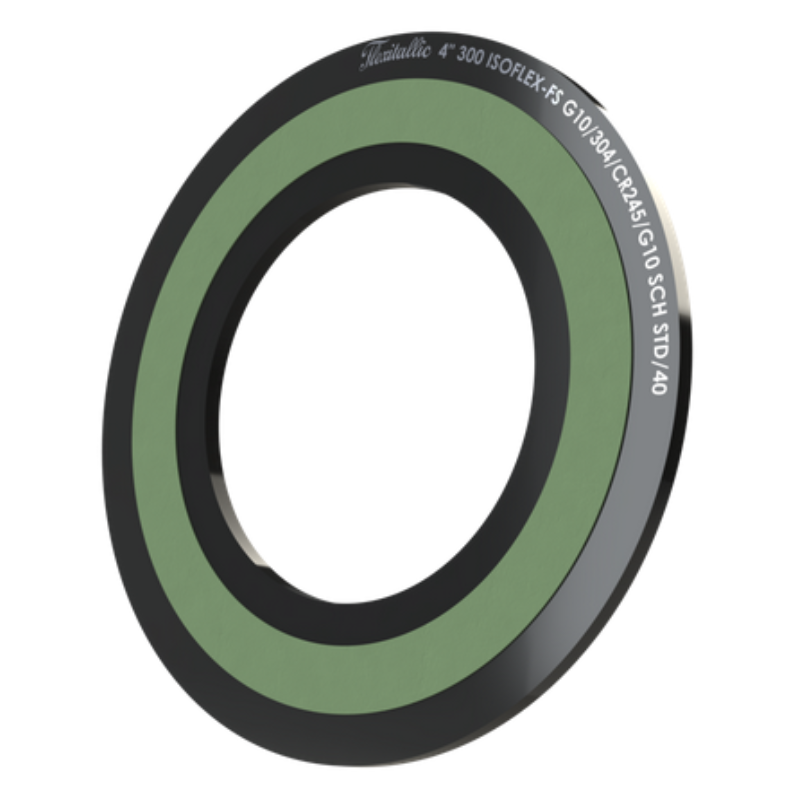

ISOFLEX®-FS is a fire-safe isolation gasket that is ideal for high-pressure and critical service applications, and is aimed at eliminating the concerns and pitfalls of existing market offerings:
- Outperforms the spring-energized seal in cycling applications
- Dual serrated metallic cores (Flexpro®) halves
- Faced with Corriculite™, a fire safe non-conductive sealing material
- Separated by polyimide isolating film. Dielectric Strength of 3000 V/mil
- Complete with NEMA grade glass reinforced epoxy (GRE) inner and outer rings
- ISOFLEX®-FS is API 6FB Fire Safe. One gasket satisfies both general and fire-safe services
