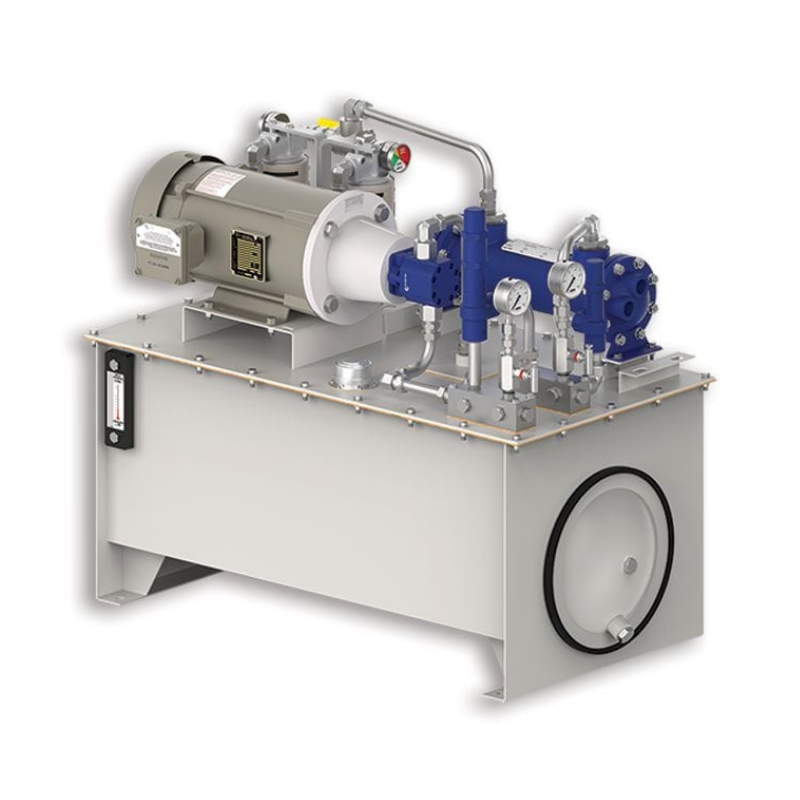

Global Standardized Plan 54 Lubrication System
The GS 54 global standardized system is an optimized, pre-engineered design based on John Crane’s fluid control expertise and engineering excellence. The GS 54 is a best-practice solution that significantly reduces specification review and delivery schedules and delivers pressurized barrier system control for optimal mechanical seal performance and reliability.
Click on the Plan 54 piping plan animation below to see the pressurized external cooling system in operation, or click on the ‘normal operation’ or ‘failure mode’ buttons to change setup. You can use the controls to pause and reset the animation.
